Creating an effective dust management solution for CNC routers is vital to workshop safety and equipment maintenance. This comprehensive guide focuses on building a DIY CNC Dust Boot. This project tackles the inefficiencies of traditional dust collection systems and offers a customized, cost-effective solution for CNC enthusiasts.

Dissecting the Flaws in Standard Dust Collection Systems

To appreciate the value of a DIY CNC Dust Boot, it's crucial to understand the shortcomings of conventional dust collection methods:

  • Long Brush Dilemma: Standard dust boots with long brushes often fail to consistently contact the work surface, resulting in inefficient dust collection.
  • Space Intrusion: Bulky dust boot designs can encroach upon the working area of CNC routers, limiting their operational capacity.
  • Compromised Visibility: Traditional dust boots can obstruct the view of the cutting area, making precision work difficult.

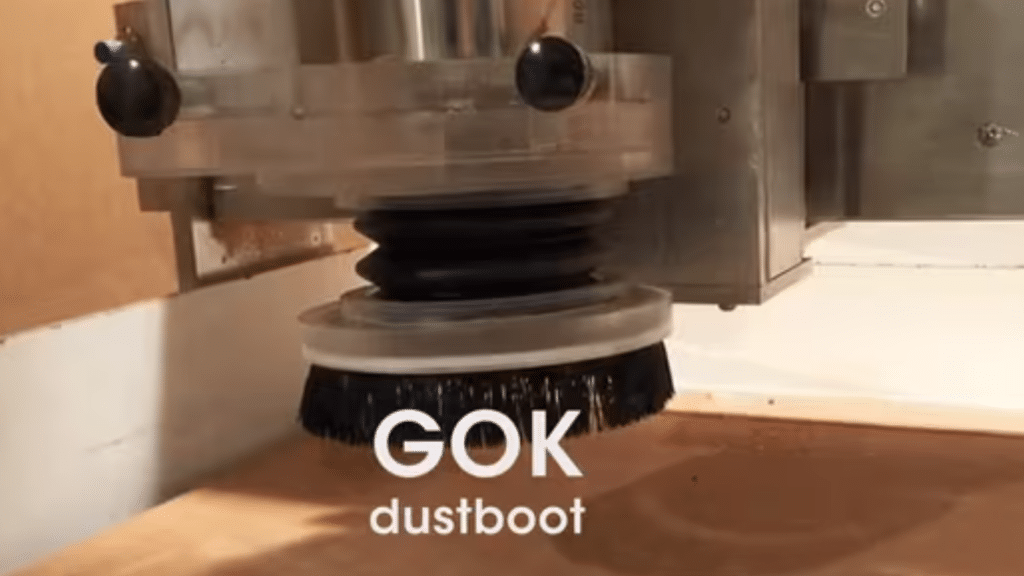

Conceptualizing the DIY CNC Dust Boot

This DIY project is inspired by the innovative "Floating Dust Shoe" design and aims to incorporate several key features:

  • Compact and Efficient Design: The goal is to minimize the dust boot's footprint while maximizing its dust collection efficiency.
  • Optimized Suction Placement: The design ensures that the suction is positioned close to the workpiece, enhancing the removal of dust and debris.
  • Adjustable Height Mechanism: A shock absorber boot billow allows the dust boot to adapt to varying heights of CNC operations, maintaining effective dust collection throughout.

Step-by-Step Construction Guide

Essential Materials

  • Varied thicknesses of plexiglass sheets
  • Specialty down-cut single flute spiral endmill for acrylic cutting
  • High-quality industrial solvent adhesive and applicator
  • Robust Rare Earth magnets
  • White painted closet rod for suction extension
  • Shock absorber boot billow for height adjustment

Detailed Building Instructions

  1. Design Phase: Design the dust boot components using CAD software like Fusion 360.
  2. Cutting Plexiglass: Employ the down-cut spiral endmill for precise and clean cuts in the acrylic.
  3. Assembling Acrylic Parts: Use the solvent adhesive to bond the cut pieces accurately.
  4. Installing Magnets: Strategically place magnets to attach the boot to the CNC spindle securely.
  5. Billow Integration: Attach the shock absorber boot to enable the self-adjusting feature of the dust boot.
  6. Final Assembly: Carefully assemble all components, ensuring proper alignment and functionality.

Real-World Applications and Customizations

This DIY CNC Dust Boot has garnered positive feedback from the CNC and DIY communities, highlighting its efficiency, ease of assembly, and effectiveness in dust collection. Given the diversity in CNC router specifications, users are encouraged to modify and adapt the design to fit their specific machines.

Expanding Beyond Dust Collection: The Broader Impact

Creating a DIY CNC Dust Boot transcends its primary function of dust collection. It exemplifies the innovative spirit of the DIY community, where practical solutions are developed to enhance workshop safety, equipment longevity, and overall work quality. This project is a testament to the power of DIY ingenuity in addressing workshop challenges, contributing to a safer, cleaner, and more efficient working environment.

Wrapping It Up

This guide offers a detailed roadmap for CNC enthusiasts to build their own DIY CNC Dust Boot, empowering them to improve their workshop's dust management system. By following these steps, users can not only enhance the functionality of their CNC routers but also contribute to a safer and more efficient workshop environment.

Self Adjusting CNC Dust Boot: 24 Steps - Instructables

I'd like you to please discover how to build a DIY CNC Dust Boot for improved workshop efficiency and safety.

This guide covers the drawbacks of standard dust collection systems and offers step-by-step instructions on crafting a compact, efficient, and adjustable dust boot for CNC routers.
